Plastic Eye Dropper Bottle Inspection Guide

Introduction: Why Eye Dropper Bottle Inspection is Essential

Eye dropper bottles are essential for preserving product integrity, sterility, and dosing accuracy in pharmaceutical and medical packaging. For patients to use these bottles safely and dependably, they must be free of flaws, contamination, and structural problems.
Providing eye dropper bottles that are of superior quality and free of defects is essential for plastic bottle producers because:
✅ In order to comply with FDA and GMP rules, pharmaceutical firms require packaging that has zero defects.
✅ Product recalls, contamination hazards, and consumer complaints are all caused by defective bottles.
✅ At high production speeds, manual inspection is ineffective, and conventional techniques miss micro-defects.
Manufacturers of eye dropper bottles now need automated machine vision inspection to get rid of flaws and enhance quality control.

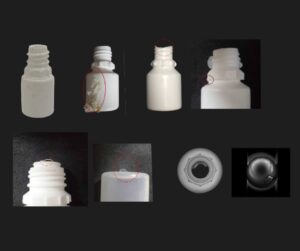

Common Defects in Plastic Eye Dropper Bottles

1. Molding Defects

• Flashes & Extra Material – Excess plastic at seams, affecting fitment.
• Short Fill & Shrinkage – Improperly shaped bottles.
• Double Shot – Overlapping material, leading to inconsistency.
• Ratchet Not Formed – Defective locking rings that prevent secure closure.

2. Structural Defects

• Thin Walls & Weak Sides – Can cause bottles to collapse or break under pressure.
• Bottom Burst & Bulging – Weak bottom structure causing instability.
• Mouth Flash & Neck Contamination – Poor sealing, leading to leakage and contamination risks.

3. Contamination & Visual Defects

• Black Spots & Material Inclusions – Foreign particles embedded in plastic.
• Oil Contamination – Residues from the manufacturing process.
• Burn Spots & Discoloration – Overheating issues during molding.

4. Dimensional & Branding Defects

• Bottom Logo Missing – Affects branding and traceability.
• Misaligned Preform – Bottles fail to meet dimensional accuracy requirements.

Challenges of Manual Inspection vs. Machine Vision Inspection

Manual Inspection: Why It’s No Longer Sufficient

Error-Prone – Human inspectors miss subtle defects due to fatigue.
Slow & Labor-Intensive – Cannot keep up with high-speed production.
Inconsistent Quality – Judgments vary across different inspectors.
High Risk of Recalls – Undetected defects increase rejection rates downstream.

Machine Vision Inspection: The Best Solution

✅ 100% High-Speed Inspection – BIS-EDB inspects 14,000 bottles per hour.
✅ Automated Sorting & Rejection – Defective bottles are immediately ejected.
✅ Precision & Accuracy – Detects even the smallest defects consistently.
✅ Regulatory Compliance – Meets pharma industry standards (GMP, FDA, ISO 9001).

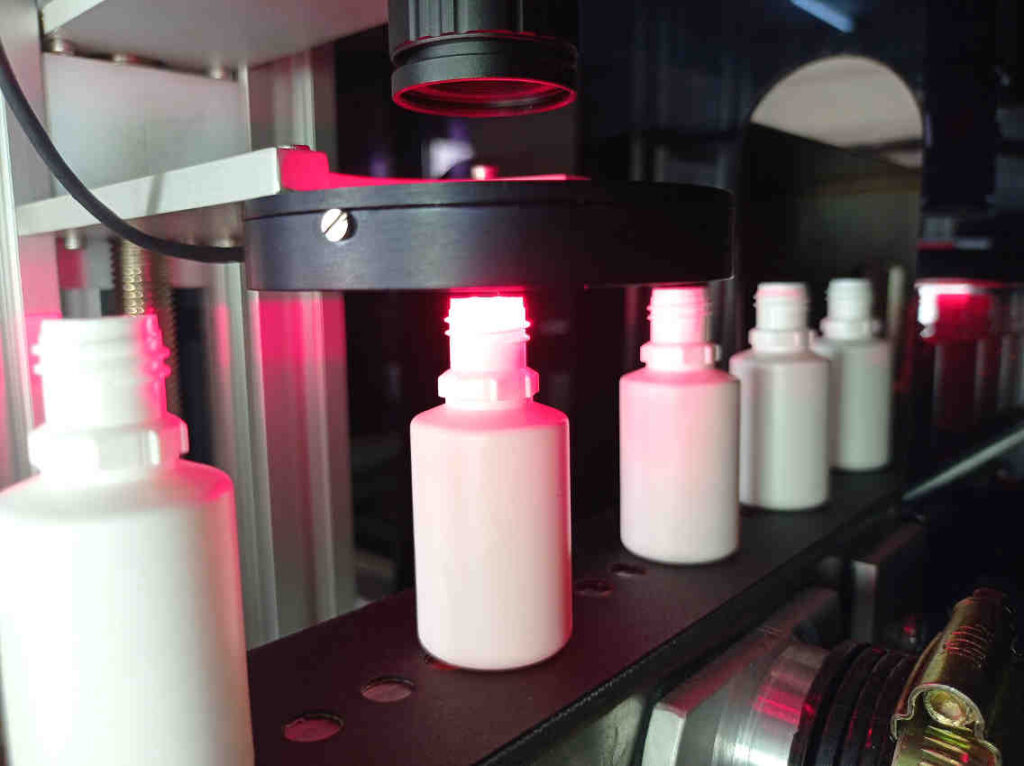

How the Optomech BIS-EDB Machine Works for Eye Dropper Bottle Inspection

1. High-Speed Image Capture

• Uses multiple machine vision cameras to capture a 360° view of the bottle.
• Inspects neck, thread, body, bottom, and internal surface.

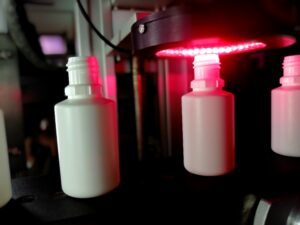

2. Advanced Lighting for Accurate Detection

• Specialized lighting techniques highlight defects such as contaminants, scratches, and molding issues.

3. AI-Powered Image Processing

• AI algorithms analyze images in real time to detect defects with high precision.
• Pass/Fail decisions are made in milliseconds.

4. Automated Rejection & Sorting

• Defective bottles are automatically ejected, ensuring only high-quality bottles proceed to filling lines.

5. Reporting & Compliance Tracking

• Customizable reports provide data on defect trends, batch quality, and rejection rates.
• Ensures full traceability for audits and regulatory compliance.

Key Features of the Optomech BIS-EDB Eye Dropper Bottle Inspection Machine

High-Speed Inspection – 14,000 bottles per hour.
Multiple Vision Cameras – Captures defects from all angles.
Customizable Inspection Parameters – Adjust acceptance/rejection criteria.
Automated Defect Sorting – No manual intervention needed.
Remote Monitoring & Support – Troubleshoot and analyze data remotely.
⚙️ Meets GMP & FDA Compliance – Ensures full regulatory adherence.

Regulatory Compliance & Industry Standards

The pharmaceutical industry has strict regulations for primary packaging. Inspection systems must comply with:

✔ FDA 21 CFR Part 11 – Ensures data integrity and audit trails.
✔ GMP (Good Manufacturing Practices) – Requires 100% quality control.
✔ ISO 9001 – Standardized quality management systems.
✔ WHO & EU GMP Guidelines – Ensure global pharma packaging compliance.

The Optomech BIS-EDB is designed to meet and exceed these regulatory requirements, ensuring pharmaceutical-grade quality for eye dropper bottles.

Case Study: How Automated Inspection Reduced Defects by 98%

A leading eye dropper bottle manufacturer struggled with:
High defect rates (5-7%) leading to pharmaceutical customer complaints.
Labor-intensive manual inspection slowing down production.
Missed contamination issues, leading to product rejections.

Solution: Implementing BIS-EDB

✅ Reduced defect rate to 0.2% in the first 3 months.
✅ Eliminated manual QC labor, saving $150,000 annually.
✅ Achieved 100% compliance with pharma packaging regulations.

Challenges in Implementing an Eye Dropper Bottle Inspection System

Initial Investment – While advanced systems require capital investment, ROI is quickly realized through cost savings and defect reduction.
Production Line Integration – The BIS-EDB is designed to integrate seamlessly with existing manufacturing lines.
Operator Training – Optomech’s user-friendly touchscreen interface ensures easy operation.

Future Trends in Eye Dropper Bottle Inspection

AI-Powered Defect Recognition – Self-learning algorithms improve accuracy.
Predictive Maintenance – Sensors prevent unexpected machine failures.
Industry 4.0 & IoT Integration – Real-time data sharing for global QC monitoring.
⚡ Faster, More Compact Machines – Higher speeds with smaller footprints.

Conclusion: Why Invest in an Eye Dropper Bottle Inspection System?

For plastic bottle manufacturers, investing in an automated inspection system like the Optomech BIS-EDB is crucial to:
✅ Meet pharmaceutical manufacturer demands for defect-free bottles.
✅ Ensure regulatory compliance with GMP, FDA, and ISO standards.
✅ Prevent recalls, improve efficiency, and reduce quality control costs.
✅ Strengthen business reputation and win more pharmaceutical clients.

Want to ensure flawless eye dropper bottle quality? Contact us today for a demo of the BIS-EDB system!
