Empty Bottle Inspection in Pharmaceutical packaging plays a critical role in ensuring the safety, stability, and integrity of medicines. Among the most common packaging solutions are plastic tablet containers, which must meet strict quality standards to prevent contamination, maintain sterility, and ensure proper sealing,

However, the manufacturing process of  plastic bottles can introduce defects due to factors like temperature variations, raw material inconsistencies, or machine errors. This makes an empty bottle inspection system or automated vision inspection a necessity for manufacturers who want to deliver defect-free bottles while maintaining efficiency and compliance with pharmaceutical regulations.

How an Empty Bottle Inspection Machine Works

An Empty Bottle Inspection System (EBIS) is designed to detect and reject defective bottles before they reach the filling line. These machines use high-speed cameras, precision optics, and AI-driven vision processing to inspect bottles for various defects in real time.

Step-by-Step Process of Inspection:

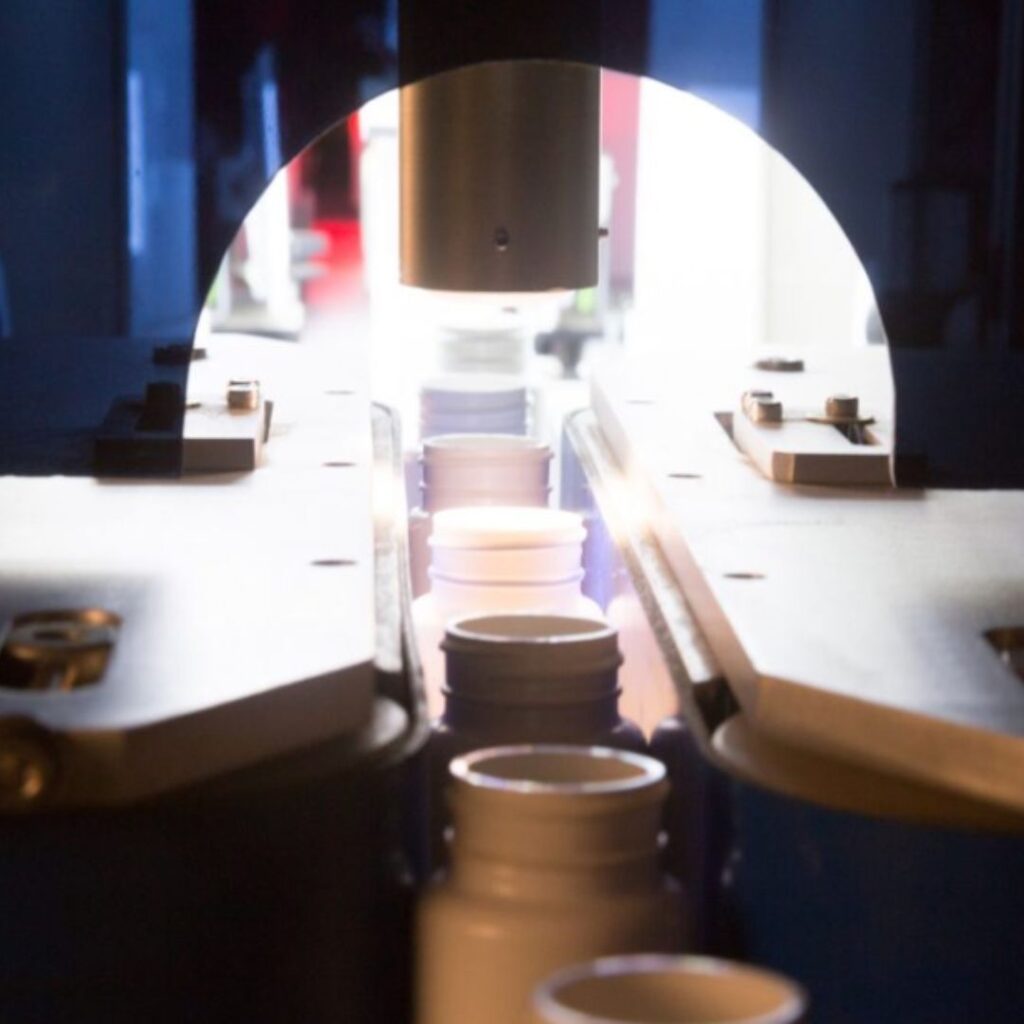

1. Bottle Handling – Bottles are picked up from the molding machine’s conveyor and transferred into the inspection system using specialized conveyors.
2. High-Speed Image Capture – Multiple machine vision cameras capture images of the bottle from different angles, including the sidewalls, base, neck, and inner surface.
3. Real-Time Image Processing – The system analyzes images instantly, detecting any shape, material, or dimensional defects.
4. Defect Classification – If a defect is found, the software classifies it into categories like black spots, ovality, thin walls, or contamination.
5. Defective Bottle Rejection – Bottles failing quality standards are automatically ejected using a pneumatic system, ensuring only flawless bottles proceed to the filling line.

What Defects Does an Empty Bottle Inspection System Detect?

A high-quality bottle inspection system, like Optomech’s BIS-XL, is capable of identifying a wide range of defects that could compromise pharmaceutical packaging:

 Outer Sidewall Defects

• Shape Variations – Deformed bottles due to improper cooling
• Black Spots & Contamination – Foreign particles embedded in plastic
• Burn Spots – Overheated plastic leading to dark patches
• Thin Walls – Uneven material distribution affecting durability

Neck and Thread Area Defects

• Thread Damage – Imperfect threading leading to poor sealing
• Contamination – Dust or foreign particles in the sealing area
• Black Spots – Impurities in the molded plastic

Base Defects

• Pinholes – Tiny holes that can lead to leakage
• Incomplete Blowing – Improper bottle formation leading to weak spots
• Flashes & Extra Material – Excess plastic on the bottom due to molding errors

Top Sealing Surface Defects

• Irregular Surface – Affects induction sealing efficiency
• Material Inclusion – Embedded particles that can weaken the seal
• Ovality & Diameter Variation – Leads to misfitting caps

Inside the Bottle Defects

• Dark Spots & Material Inclusion – Risk of contamination
• Dust or Residue – Foreign particles inside the bottle
• Incomplete Transparency – Affects quality perception and usability

Key Factors to Consider Before Buying a Bottle Inspection Machine

If you are a pharmaceutical packaging manufacturer, investing in a reliable empty bottle inspection system is essential. Here’s what you should look for:

✅ Comprehensive 360° Inspection

A system with multiple high-speed cameras ensures that all surfaces—including the inner cavity, thread area, and sealing surface—are inspected thoroughly.

✅ High-Speed Processing

The machine should operate at a speed matching your production line to prevent bottlenecks. Optomech’s BIS-XL can inspect up to 11,000 bottles per hour without compromising accuracy.

✅ Customizable Inspection Parameters

A good system should allow customization, enabling you to define tolerances for size variations, shape defects, and contamination levels.

✅ Automated Rejection & Reporting

Defective bottles should be automatically rejected to prevent manual sorting, and the system should provide detailed reports for process optimization and compliance.

✅ Regulatory Compliance

For the pharmaceutical industry, the system must comply with 21 CFR Part 11 regulations, ensuring data integrity, audit trails, and security features.

✅ Easy Integration with Production Lines

A reliable bottle inspection system should seamlessly integrate with existing blow molding and filling lines, reducing downtime and improving efficiency.

How an Empty Bottle Inspection System Benefits Manufacturers

Implementing automated bottle inspection brings significant advantages:

Zero Defect Assurance – Every bottle meets strict quality standards before filling.
Reduced Waste & Recalls – Prevent defective bottles from reaching production.
High-Speed Inspection – Inspects thousands of bottles per hour, boosting productivity.
Data-Driven Insights – Generates reports for continuous quality improvement.
Regulatory Compliance – Ensures compliance with pharmaceutical safety standards.

Conclusion

For pharmaceutical manufacturers, quality control in packaging is non-negotiable. An Empty Bottle Inspection System is a smart investment that guarantees defect-free bottles, enhances production efficiency, and ensures regulatory compliance.

At Optomech, we offer the BIS-XL, a high-performance bottle inspection system designed to meet the rigorous demands of pharmaceutical packaging. With 11 machine vision cameras, real-time defect detection, and automated rejection, our system helps manufacturers maintain the highest standards of quality and safety.
