Plastic Bottle Defect Detection: A Complete Guide for IBM & EBM

Introduction

In high-speed plastic packaging industries—whether it’s pharmaceuticals, beverages, or cosmetics—a single defective bottle can trigger batch rejections, contamination risks, and brand damage. Manufacturers producing HDPE, LDPE, PET, and PP bottles using injection or extrusion blow molding (IBM/EBM) often face persistent quality issues that sneak past manual inspection with Plastic Bottle Defect Detection.

This blog dives into the most common issues and explores how plastic bottle defect detection using automated systems helps ensure quality at scale.

Why Plastic Bottle Defect Detection Matters

• Customer Complaints → Leaky bottles or damaged caps = poor user experience
• Regulatory Non-Compliance → Especially in pharma & food where seal integrity is critical
• Increased Wastage → Defects not caught early = higher downstream rejections
• Production Downtime → Frequent manual inspections slow down high-speed lines

Common Plastic Bottle Defect Detection

1. Neck and Mouth Defects

This is ground zero for sealing failure and leakage.

Typical Issues:

• Short Shot / Short Neck
• Thread Damage or Flashing
• Oval or Out-of-Tolerance Neck ID/OD
• Contaminants (Black Spots, Foreign Particles)

Detection Method:

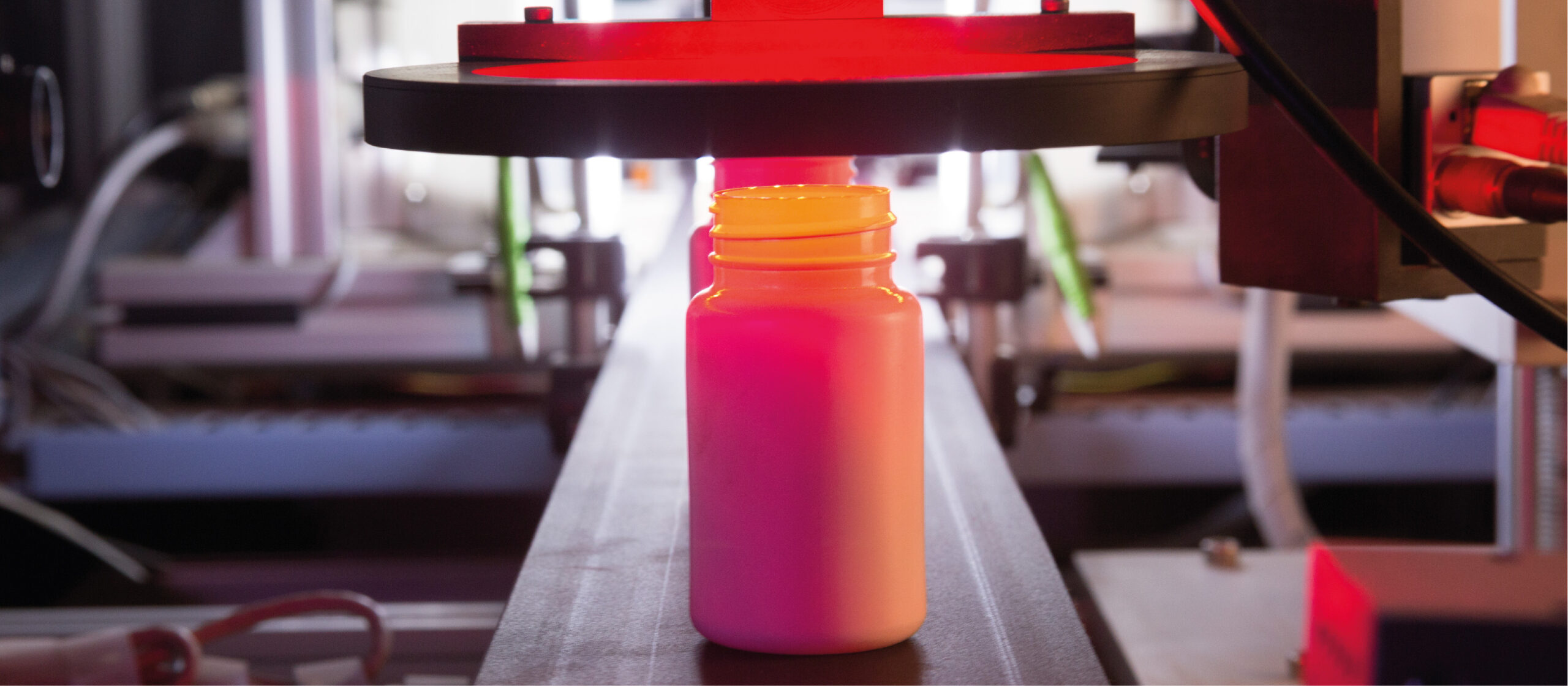

• High-resolution area scan cameras focused on the neck from multiple angles
• Telecentric lenses to detect thread profile, circularity, and flatness deviations
• Optical contrast to detect even small black specs or trapped contamination

2. Body and Sidewall Defects

These affect structural integrity, branding, and print clarity.

Typical Issues:

• Holes / Pinholes
• Thinning / Blown-out sections
• Bubbles or Inclusions
• Burn Marks or Surface Deformations
• Label Misplacement or Misalignment (if pre-labeled)

Detection Method:

• Side-mounted cameras with diffused dome lighting for uniform highlight of dents, shade variations
• Software algorithms detect density shifts, warping, or visual contamination
• Edge detection to analyze label positioning or distortion

3. Bottom Defects

Crucial for stability and stacking.

Typical Issues:

• Warped Bottoms / Concave Bases
• Parting Line Misalignment
• Embedded Debris or Flash

Detection Method:

• Bottom-facing camera under collimated lighting
• Shape and geometry check using vision algorithms for flatness and symmetry

4. Internal Defects (Invisible to Naked Eye)

These can pass undetected in manual QA but cause issues during capping or filling.

Typical Issues:

• Micro-cracks or Stress Lines
• Trapped Air Bubbles or Voids
• Inconsistent Wall Thickness

Detection Method:

• Backlit imaging with high-speed cameras
• Multi-angle inspection to catch optical variations

Optional: AI-based defect classification trained to identify subtle internal stress points

 Why Manual Inspection Doesn’t Cut It Anymore

Limitation Impact

• Operator Fatigue Missed Defects
• Subjectivity Inconsistent Quality
• Slow Throughput Bottlenecks in High-Speed Lines
• Can’t Detect Micro Defects Regulatory & Warranty Risks

 Solution: Machine Vision-Based Bottle Inspection Systems

Advanced inspection systems like Optomech’s BIS-XL solve all of the above problems by combining:

• 11+ High-Resolution Cameras
• Custom Lighting (Ring, Coaxial, Backlit, etc.)
• Non-contact, Non-destructive Testing
• 21 CFR Part 11 Compliant Software

Real-time defect classification and rejection

Proven to operate at speeds up to 11,000 bottles/hour, BIS-XL ensures 100% inline inspection with no compromise on quality.

Industries That Benefit With Plastic Bottle Defect Detection

• Pharmaceuticals → Where sterility & seal integrity are critical
• FMCG → Where speed and packaging quality define brand value
• Cosmetics & Personal Care → Where visual perfection is key
• Agrochemicals → Where leakage can cause hazards

 Final Takeaway

Defects in plastic bottles are not just cosmetic—they can break your supply chain, invite regulatory penalties, and cost you customers. Adopting AI-powered bottle inspection systems is no longer optional—it’s essential.

✉ Ready to go defect-free?

Reach out to us at sales@optomech.in

Or visit optomech.in to book a free demo of the BIS-XL system.
